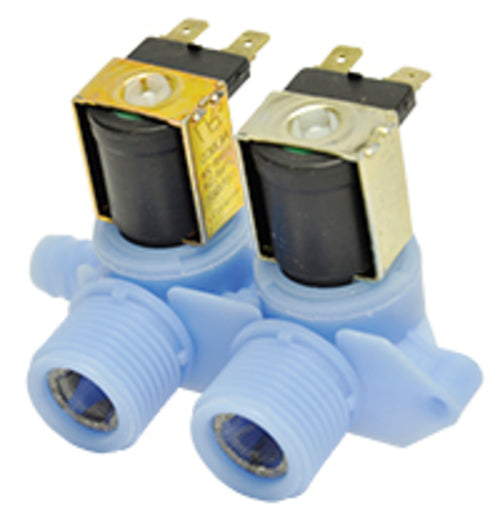

Robertshaw CW-164 Universal Washer Water Inlet Valve, E-1

Robertshaw Universal CW51 Washer Water Inlet Valve. The water inlet valve controls the water flow into the washer. The Robertshaw E-1 Mixing Water Valve Series is designed for laundry clothes washer applications. E-1 models are non-regulated. Pilot-operated diaphragm provides high flow capacity with minimum power requirements. Compact design compared to predecessor valves to allow more flexibility for applications. Flange mounting with screw boss is molded into the body for ease of installation. Design uses a staked coil L frame with drawn pole sleeves to eliminate loose or missing pole pieces. Improved coil bobbin design reduces problems. Slow closing operators reduce water hammer and extend valve life. Spin-weld assembly minimizes problems caused by loose or missing screws. Suitable for applications using liquids up to 160°F (71°C). Quiet operation. Stainless steel inlet screens with 60 x 60 mesh (60 holes/indl in both x and y directions).

Possible Repair Solution For:
Will not fill, will not stop filling, will not start, leaking water, not washing properly, no hot water, no cold water.

Please Note: This is intended as a guideline only, as other items can cause the same symptoms.

This part is also known as a washing machine water inlet valve, fill valve.
