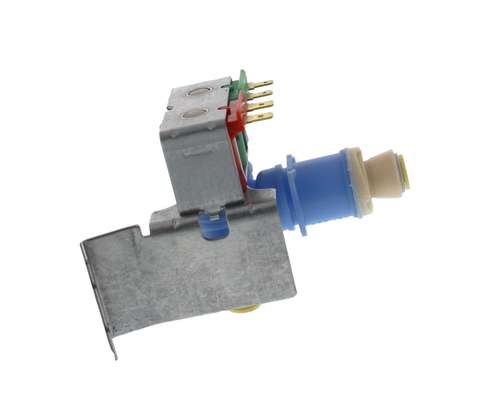

Robertshaw IMV-708 Refrigerator Water Inlet Valve

The Robertshaw® N-86 Dual Water Valve Series is an automatic icemaker valve for residential refrigerator icemakers. Features an inlet fitting which connects directly to ¼” (6.35mm) tubing without an additional adaptor. The N-86 valve allows individual control of water flow through two outlets by using a single inlet for water to the door and for water to fill the icemaker.

Direct acting armature provides high flow capacity with minimum power requirements
Encapsulated coil provides high mechanical and dielectric strength, and is moisture resistant
Unique armature and seat design reduce unwanted particles from entering the armature area
Armature is designed with clearances which minimize the possibility of jamming due to foreign materials
Bodies are made of polypro which provides high resistance to corrosion and mineral deposits
Suitable for applications using water at temperatures up to 160°F (71°C)

Flow Rate: 130 CC in 7.5 seconds, 22-38 CC per second
Body Material: Polypro
Inlet Size: 1/4"
Inlet Type: Flare, loxit or compression
Outlet Size: 7/16" - 20, 1/2" - 20
Outlet Type: UNF
Coil Volts: 120
Coil Hz: 50/60
Coil Watts: 35, 20

Cross Reference:
ROBERTSHAW K-75717 Exact
ROBERTSHAW K-75717-AM Exact
WHIRLPOOL 2188708 Exact
